Pneumatic Foam Planer · Made in the USA

The industry standard in foam insulation trimming.

Name: QuickPlane Foam Insulation Trimmer
Brand: QuickPlane

For more than 30 years, contractors have reached for the QuickPlane — a durable, lightweight air tool built on virtually unbreakable blades and a sturdy aluminum frame.

Shop Machines & Parts Call (866) 677-1641

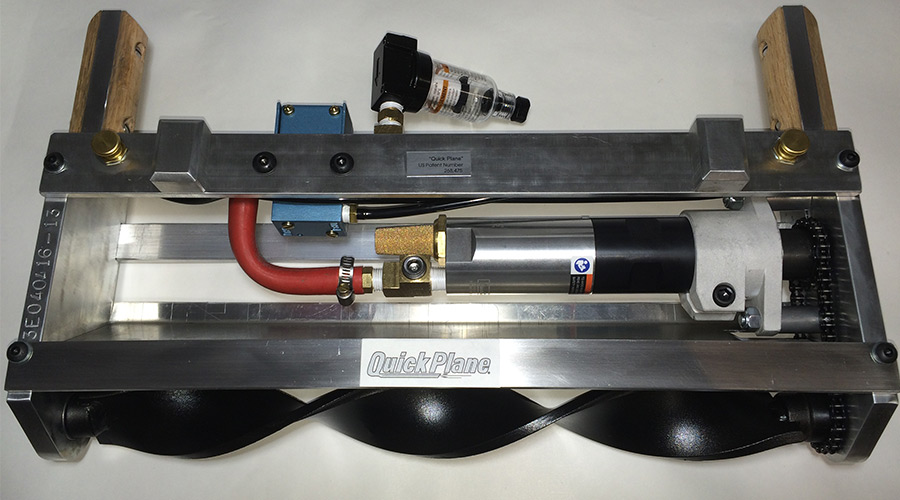

The QuickPlane foam insulation trimmer — aluminum frame, pneumatic motor, and spiral cutting blade

16" & 24" MODELS

Why QuickPlane

America's #1 foam insulation trimming tool.

A winning combination of safety, speed, reliability, and affordability — engineered to withstand the job site while staying light and simple enough for anyone to run.

Safety

Built-in safeguards — dual-start buttons and two safety blocks — keep the tool from running until the operator means it to.

Speed

Maximum uptime, minimal downtime — the QuickPlane keeps pace on the longest jobs without slowing you down.

Reliability

Tool-hardened blades and a machined aluminum body are built to take the job site in stride — dependable and repairable, ready to earn for years.

Affordability

You'll notice right away how much faster your project moves — saving you time and paying for the tool back over and over again.

Built for the job site

A unique air tool, engineered to last.

Foam trimming demands a very specific air tool: tough enough for the construction site, yet light and simple enough that anyone can run it. Tool-hardened blades, a machined aluminum body, and minimal downtime are what made the QuickPlane the go-to for planing polyurethane and soft foam.

It's proven across countless applications — from new residential construction to reefer trailers and everything in between. Every wear part is replaceable, so the tool keeps earning for years.

Operating Specifications

Air pressure: 87–90 psi
Air delivery: 23.0 cfm min
Air quality: Dry · clean · filtered
Lubrication: Every 8 hrs
Construction: Aluminum frame
Blades: Tool-hardened steel
Models: 16" & 24"
Protection: Eye · ear · breathing

Features & Safety

Safety engineered into every QuickPlane.

The QuickPlane is engineered to make foam trimming as safe as it is fast — operator safety is designed in, from dual-start buttons and safety blocks to a chip guard, an inline air filter, and a rugged all-aluminum frame.

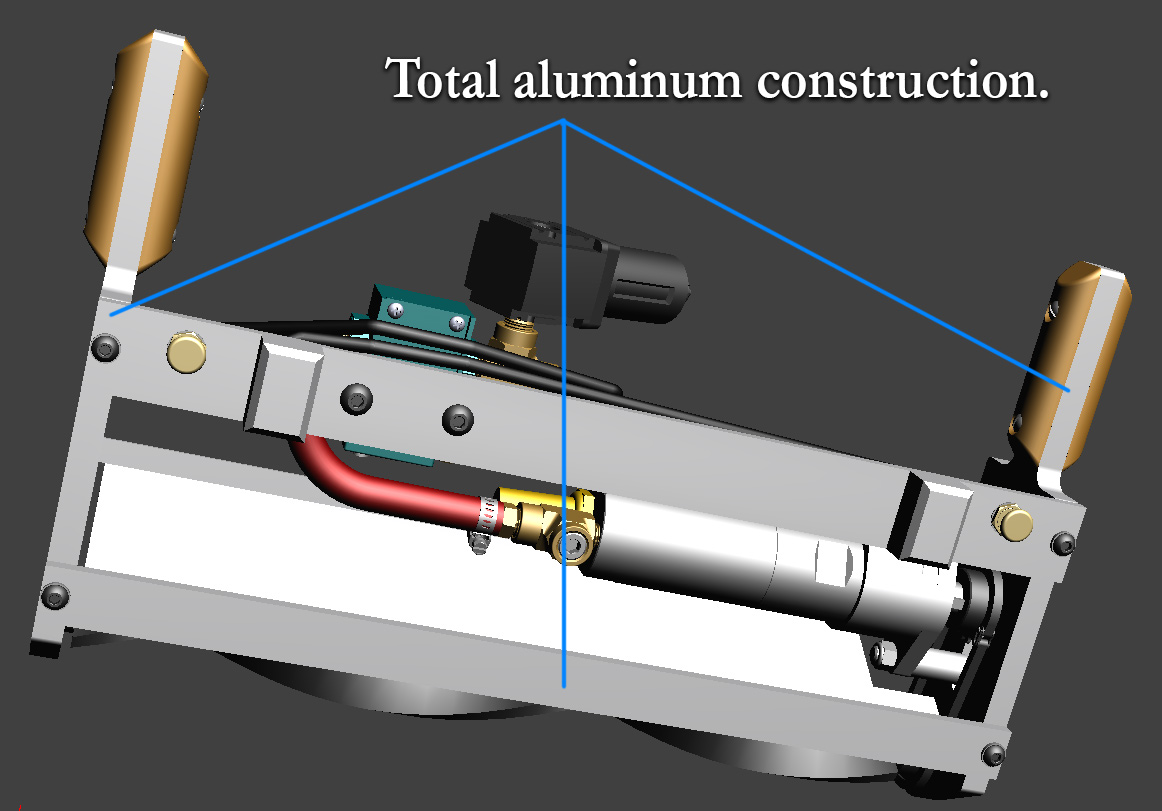

Total aluminum construction — the QuickPlane frame is built entirely of aluminum.

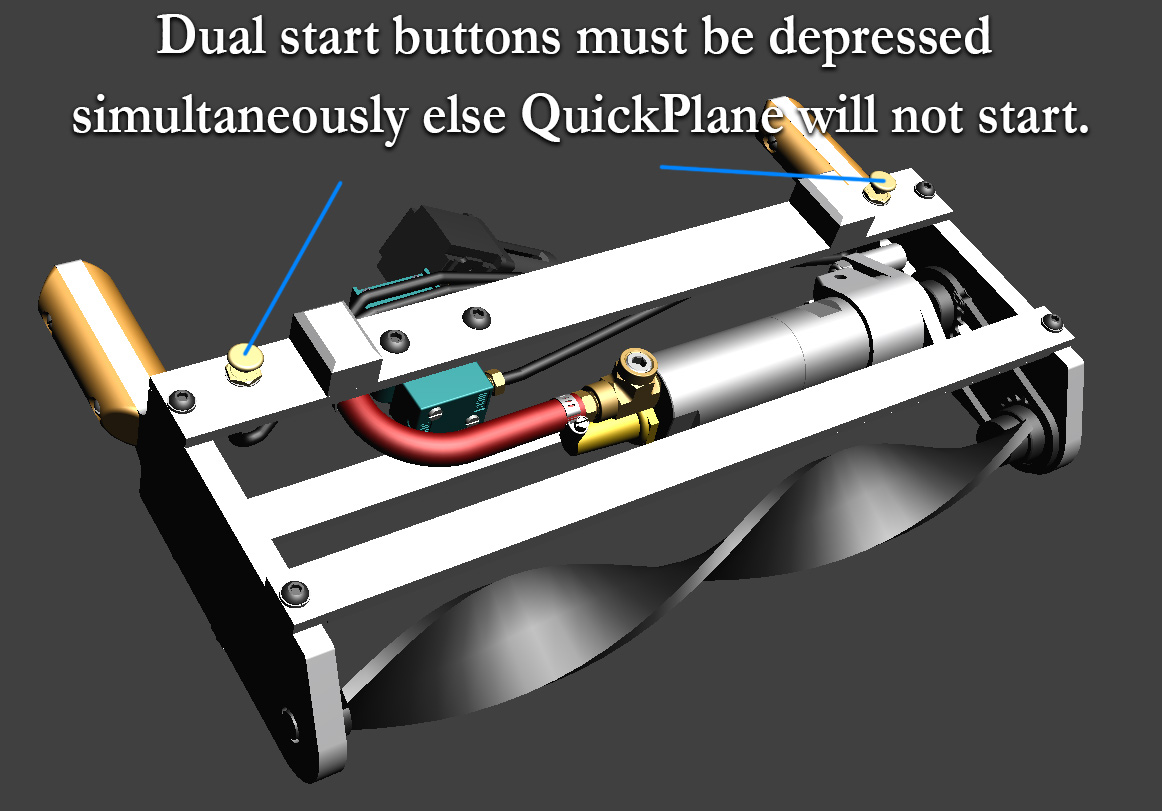

Dual start buttons must be depressed simultaneously or the QuickPlane will not start.

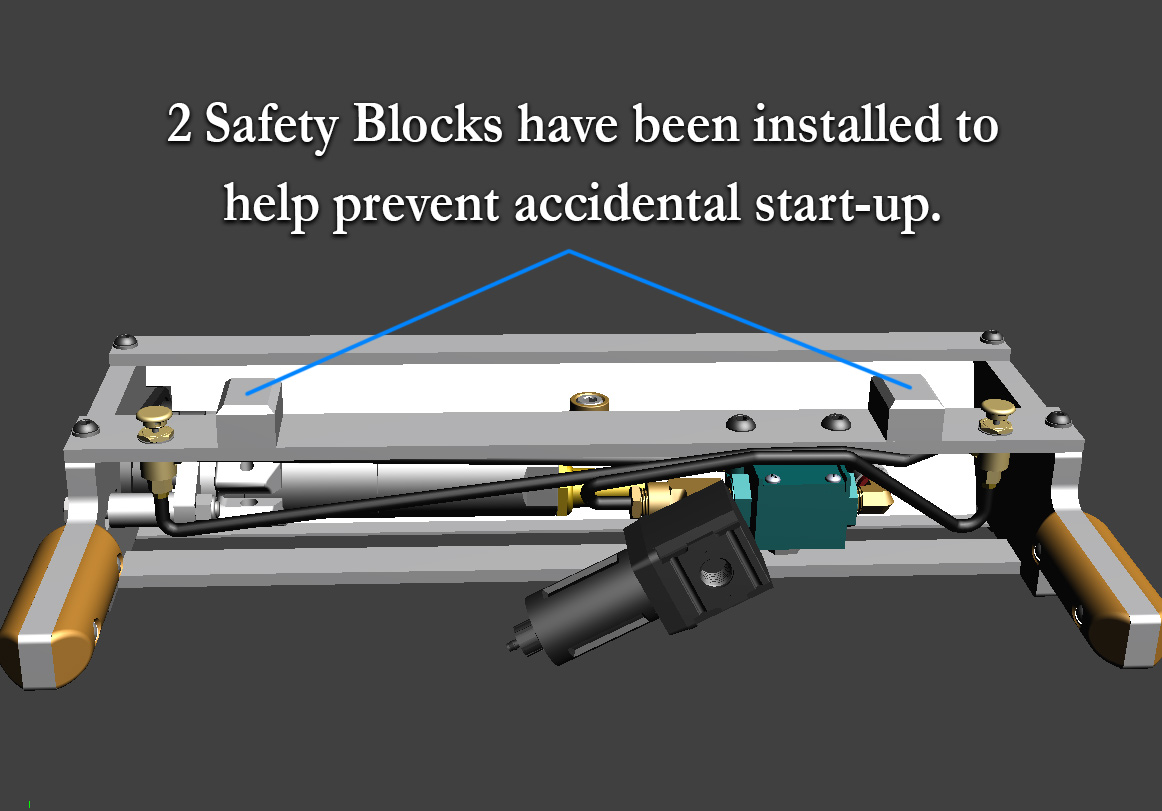

Two safety blocks are installed to help prevent accidental start-up.

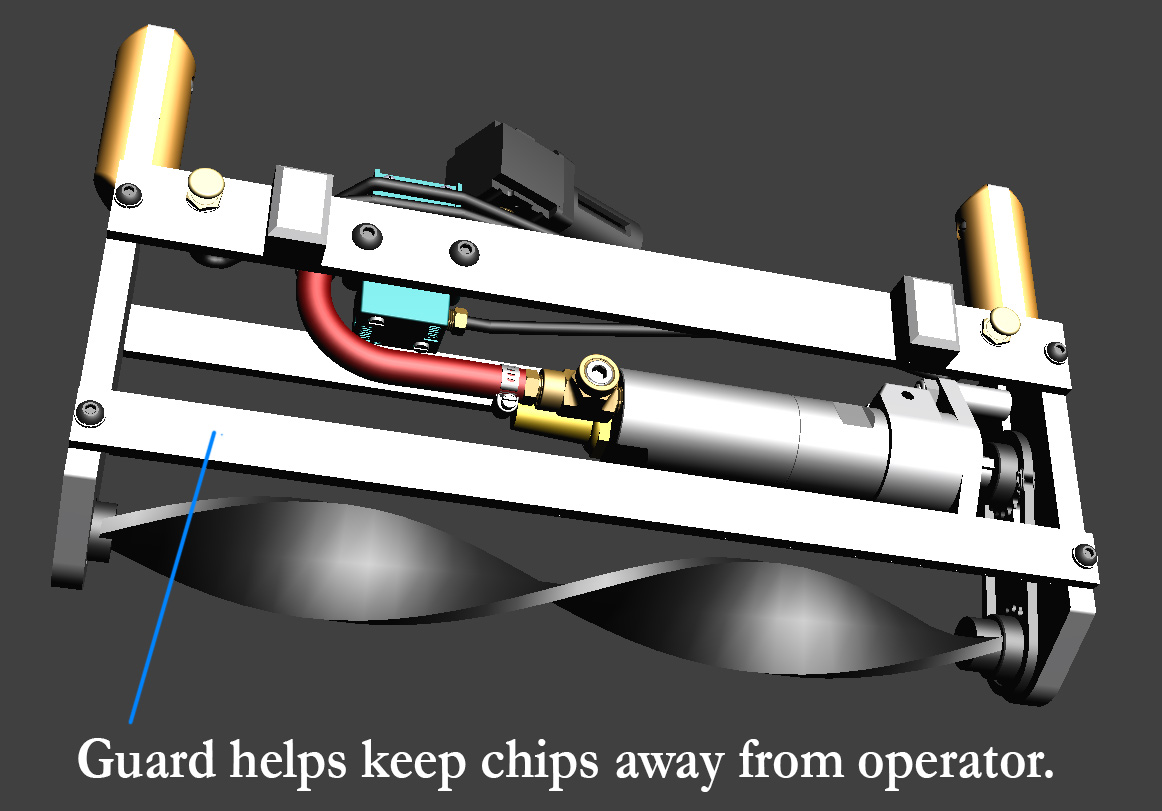

A guard helps keep trimmed chips away from the operator.

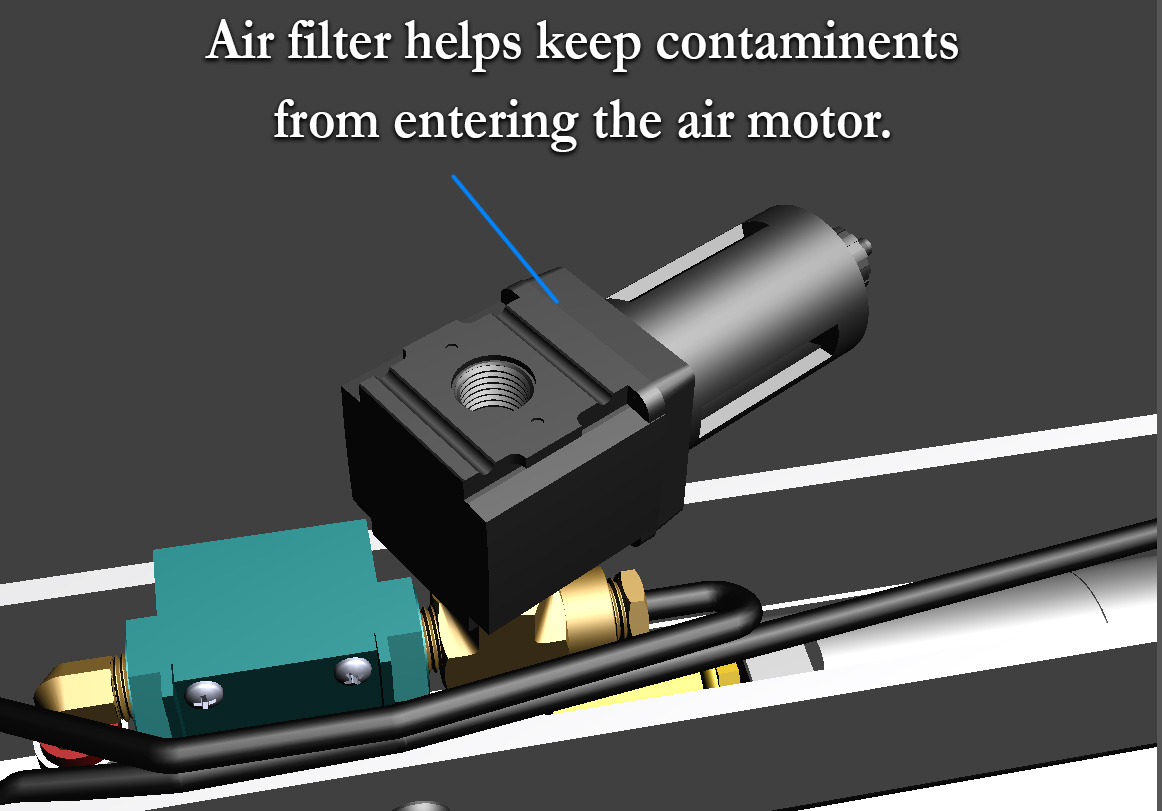

An air filter helps keep contaminants from entering the air motor.

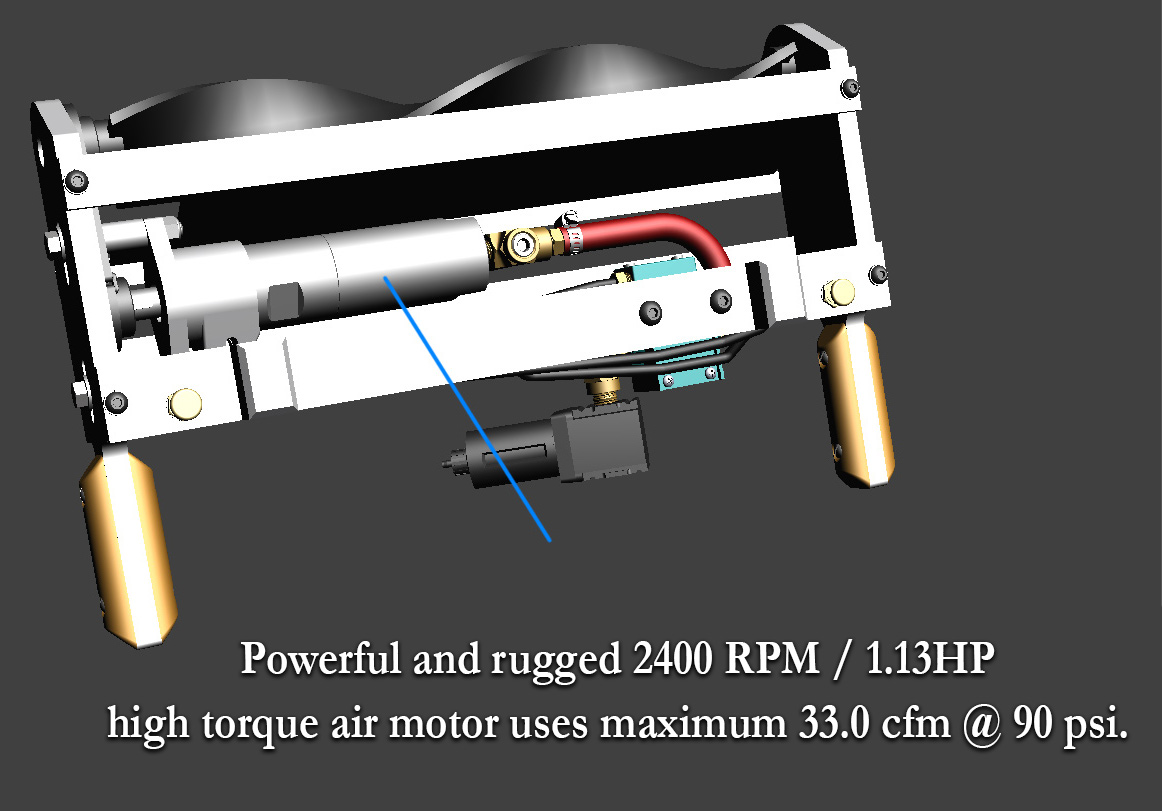

Powerful, rugged 2400 RPM / 1.13 HP high-torque air motor, max 33.0 cfm at 90 psi.

Dual-start buttonsBoth must be pressed at once, or the tool won't run.

Two safety blocksInstalled to help prevent accidental start-up.

Chip guardKeeps trimmed foam chips away from the operator.

All-aluminum frameRugged, lightweight, and corrosion-resistant.

Inline air filterKeeps contaminants out of the air motor.

Required PPEEye, ear, and breathing protection while in use.

Blades & Brush

The right edge for every foam.

The quality of the blade or brush is what makes a clean, precise cut — and durability is what saves you money over the life of the tool.

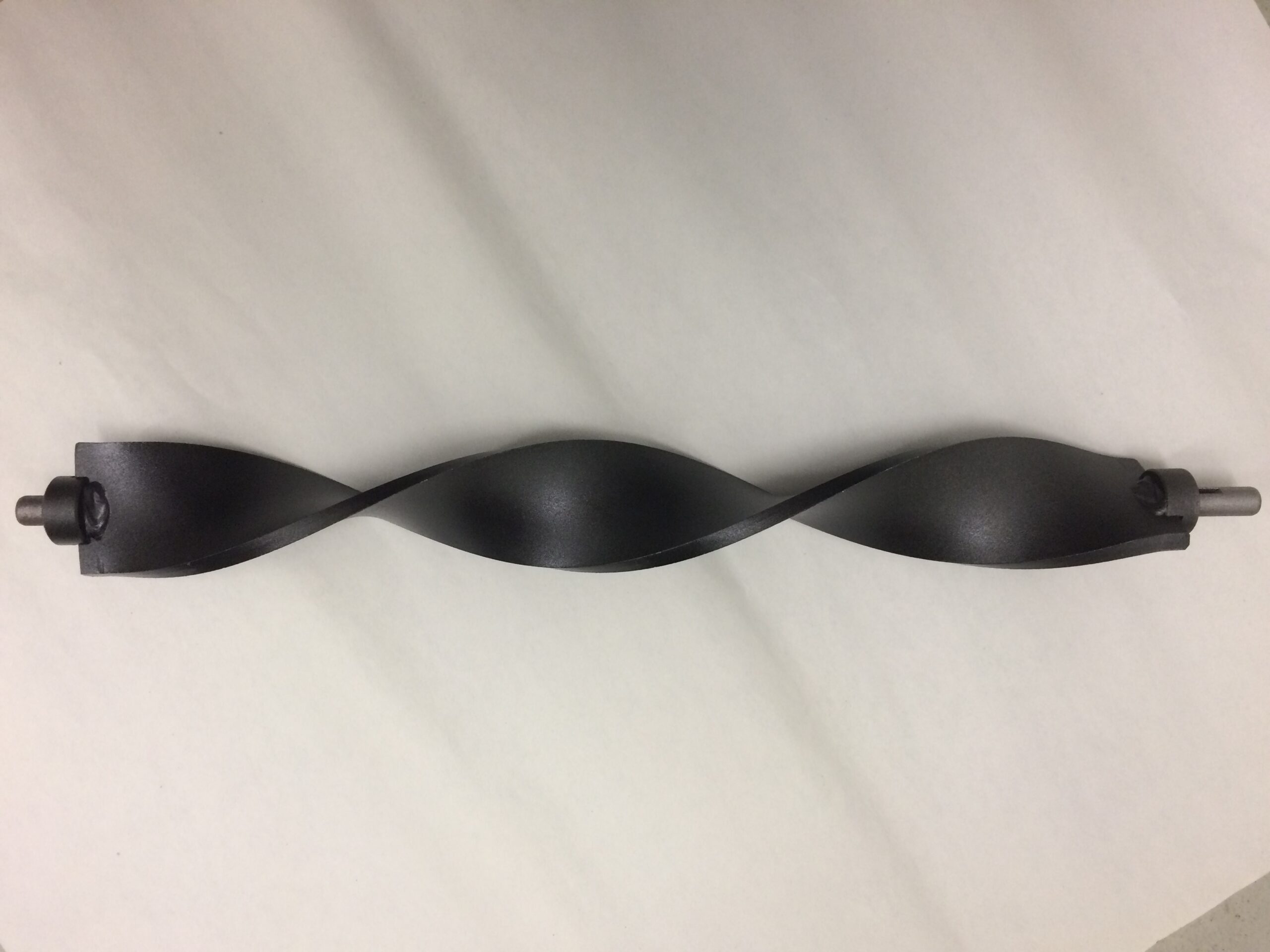

A solid, tool-hardened steel blade for most interior foam planing. Machined with a bevel for positive cutting action and minimal drag.

Standard Blade

Everyday interior planing

QuickPlane standard tool-hardened steel spiral blade

Engineered for polyurethane foam over 2 lb density. A groove along the cutting edge adds sharpness and cuts elastomeric membranes — ideal for retrofit roof work.

Special Purpose Blade

Dense & roofing foam

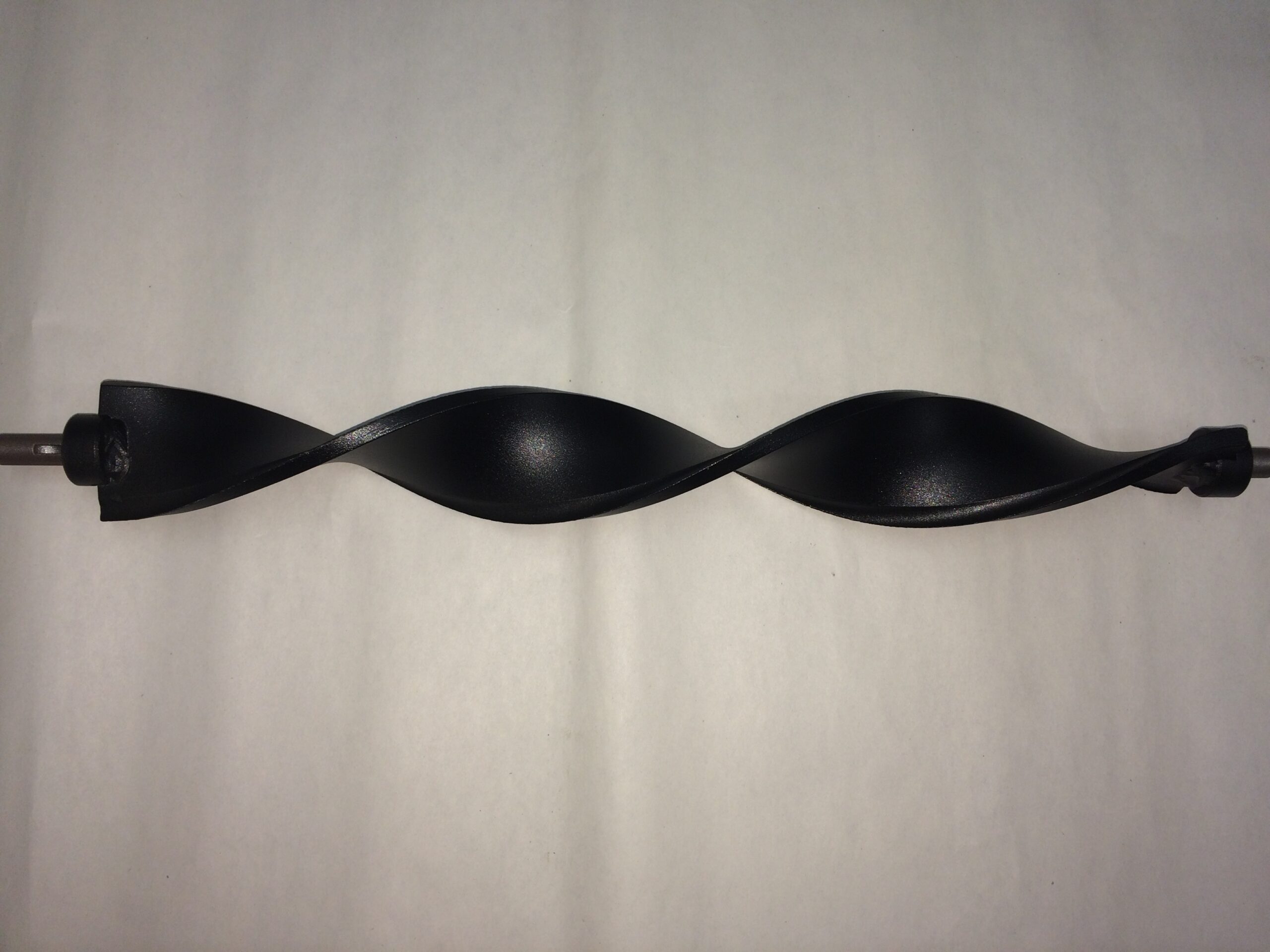

QuickPlane special purpose spiral blade with grooved cutting edge

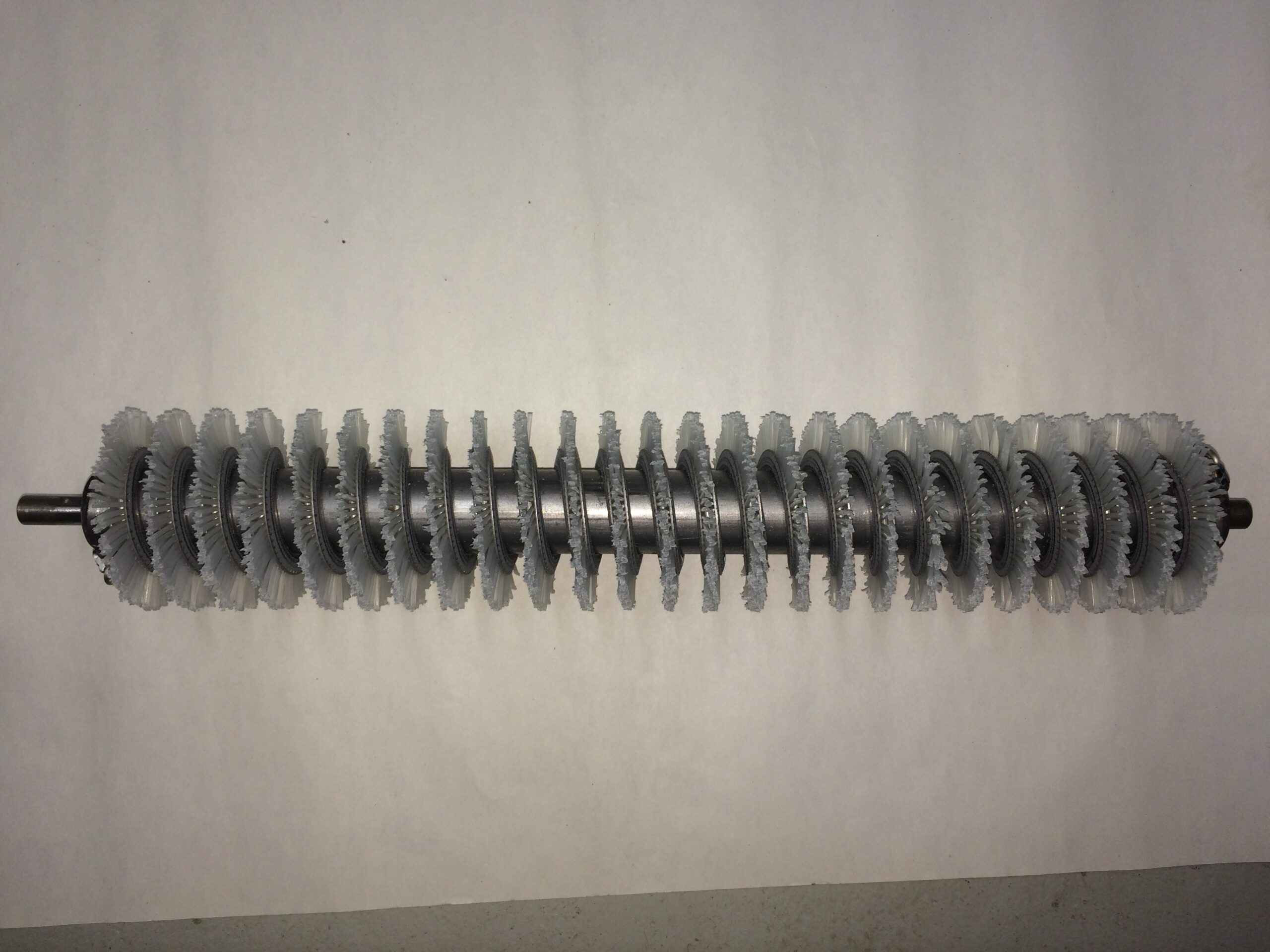

Combines steel with rigid nylon bristles for trimming ½ lb density foam. Pair with a good dust-collection system for best results.

Special Purpose Brush

Light ½ lb foam

30+ years as the industry standard

Founded & built by

Dan Jansen

Now stewarded by QP Tools LLC

Our Story

Carrying the standard forward.

For more than three decades, Dan Jansen built the QuickPlane into the tool foam-insulation contractors trust — one honest, American-made air tool at a time. As Dan steps into a very well-earned retirement, we want to say it plainly: thank you, Dan. The reputation you built is the reason this tool has a next chapter.

QuickPlane is now owned and operated by QP Tools LLC. Nothing about what made the tool great changes — the same virtually unbreakable blades, the same sturdy aluminum build, the same made-in-the-USA quality and hands-on service. We're proud to keep the standard exactly where Dan set it, and to keep it running strong for the contractors who depend on it.

— The team at QP Tools LLCContinuing QuickPlane since 2026

Order & Contact

Order your QuickPlane today.

Browse and buy machines, blades, and parts in our online shop — pay by PayPal, card, check, or ACH. Prefer to talk it through or need a freight quote? Call (866) 677-1641 or send us a note below.
